FUSION H SERIES KITS

HIGH ASPECT

SIZES: H550 / H700 / H850 / H1050 / H1300

FOIL CONSTRUCTION INSTRUCTIONS

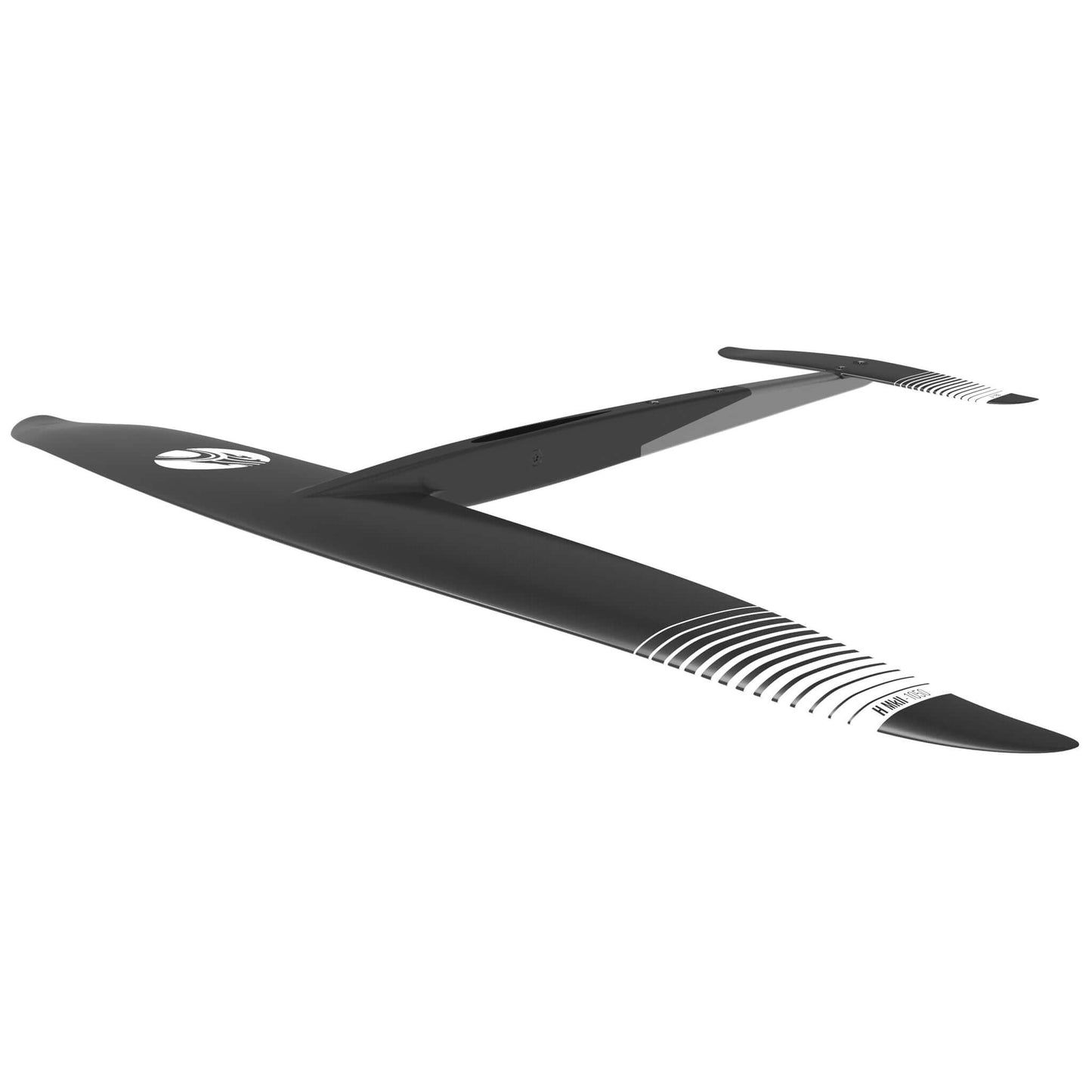

Just when you thought a product couldn't get any better, the new H-Series MkII pushes the future of foil design, setting new standards for efficiency and performance. The design team has implemented new technologies from the collaboration with Sintef. Through water testing in the largest tank in Europe, the tip shape of the H-Series has been refined so that the tips can break through and re-immerse without cavitation. This allows for more progressive riding and radical turns, be it with a kite, wing or prone. The new, slimmer profile now offers a larger speed range, which makes it easier to get started in freestyle tricks or on the race field. It combines seamlessly with all Cabrinha V-Series stabs and is part of the modular Cab Fusion system.

The Fusion H-Series kits come with everything you need, all you have to do is add the mast of your choice. (poles are sold separately)

INCLUDED IN THE KIT

Wing & Stabilizer
Fusion Fuselage Alloy Medium
Track Nut Train X2
Screw set foam core plates

DESIGN PROFILE

High aspect ratio, swept outline, extremely slim, efficient profile, moderate anhedrality with flared tips.

WING FEATURES

• Ultra efficient design
• Ultra slim profile
• Refined tip shape.
• Tapered fit
• Increased torsional rigidity
• High aspect ratio
• Secure connection with drum nut
• Pre-preg carbon construction
• Modular design for use with Cab Fusion products

TECHNICAL SPECIFICATIONS

• H550- 550cm², WS 690, AR 9.52, string 110mm
• H700- 700cm², WS 815, AR 9.49, string 120mm
• H850- 850cm², WS 900, AR 9.53 string 130mm
• H1050- 1050cm², WS 1000, AR 9.52, string 140mm
• H1300 - 1300cm², WS 1090, AR 9.14, string 150mm
