FUSION X-SERIES WINGS MKII

FREERIDE

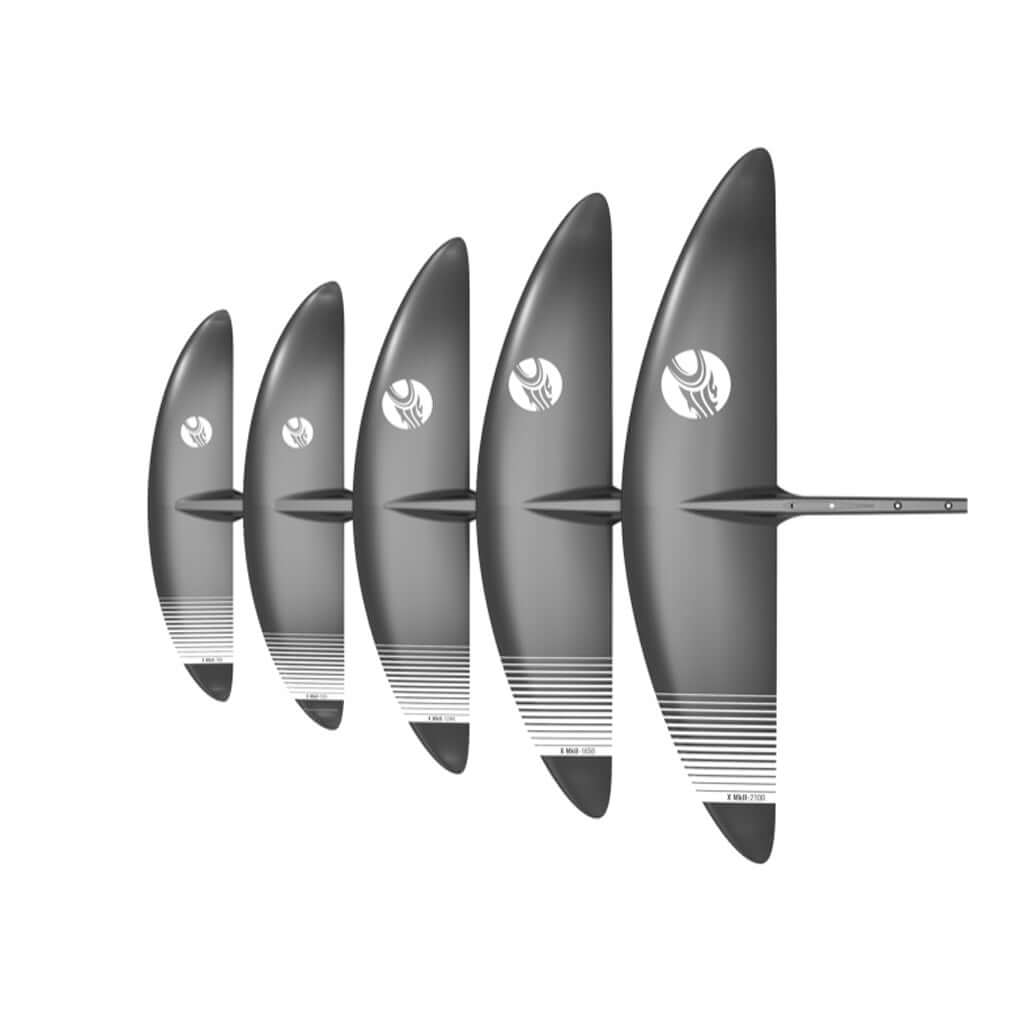

SIZES: X700 / X930 / X1240 / X1650 / 2100

FOIL CONSTRUCTION INSTRUCTIONS

With the introduction of the X-Series Wings, we have taken Cabrinha's foil program to a whole new level. By collaborating with SINTEF and the University of Norway, we were able to fully analyze and simulate the performance of airfoils in the world's largest cavitation tank. On this basis we were able to further develop the X-Series into the industry's leading all-round hydrofoil. With a refined tip shape and improved profile, it's possible to bare the tips and still be ready for the next turn.

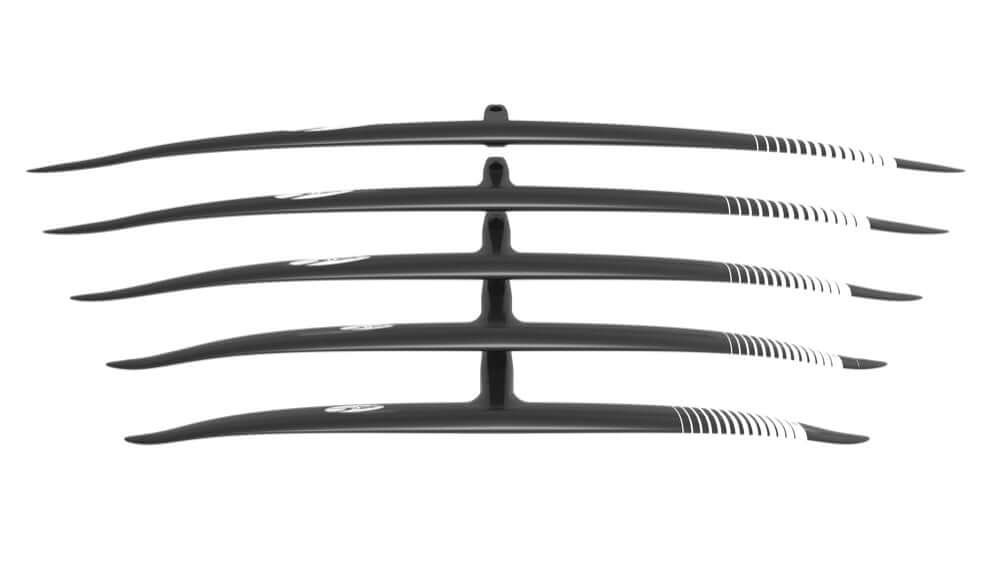

DESIGN PROFILE

Swept LE, Straight TE, extremely slim, efficient profile, moderate anhedral.

WING FEATURES

• Loose and agile
• All-round slim profile
• Refined tip shape
• Tapered fit
• torsional rigidity
• Medium AR
• PMI core
• Pre-preg construction
• Modular

TECHNICAL SPECIFICATIONS

• X700- 700cm², WS 640mm, AR 5.85, tendon 140
• X930- 930cm², WS 750mm, AR 6.05, tendon 165
• X1240- 1240cm² WS 870mm, AR 6.10, tendon 190
• X1650- 1650 cm², WS 1010mm, AR 6.18, tendon 220
• X2100- 2100 cm², WS 1150mm, AR 6.01, tendon 255

set contains:
Front wing, wing covers.
